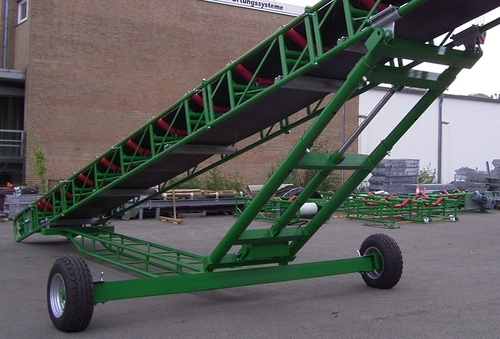

Chassis with manual hydraulics, painted for BGM 500/650 with AA: 12 m

Chassis with manual hydraulics, painted for BGM 500/650 with AA: 12 m – manual hydraulics, height adjustment 15 to 30°, cotter pin lock – swivel wheels for lateral mobility up to 90° (for changing location)
– Additional pipe clamps (4 pcs.) for attachment with conveyor belt – Pneumatic tyres (2 pcs.), without motor drive, without outrigger supports – Not approved for use on public roads Special care must be taken when using the swivel wheels! ############################################################## – Do not use the height adjustment when the wheels are swivelled! – The axle must be unloaded to prevent uncontrolled tipping.
– Always swivel the wheels in the direction of the discharge. This will ensure even greater stability. – After swivelling, immediately insert the locking bolts into the designated holes and secure them. – Never pull the conveyor belt across the ground at a right angle to the swivelled wheels. Expected delivery in 60 days.
