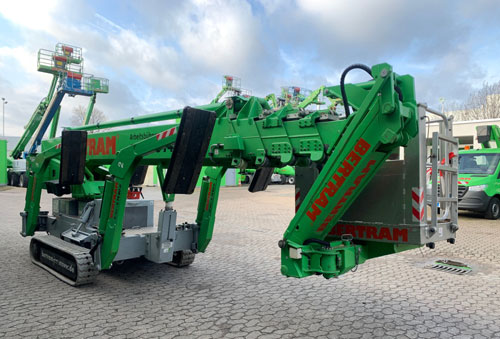

Self-propelled tracked work platform Teupen LEO 30T Equipment: -High-quality paint finish RAL 6018/7001
-230 V/16 A double socket in the work basket -Practical tool tray in the work basket -Complete control panel on the chassis -Stepless proportional controls – multiple functions possible simultaneously -All functions controllable from the basket -Internally protected energy supply for basket control
-Drive via 3-cylinder Kubota diesel engine D1005 E -Drive via 230 V mains operation -Start-stop device for the combustion engine -Telescopic boom made of highly stable steel/aluminium profiles on low-wear inclined rollers for optimum
load distribution of the telescopic guides -Safety monitoring for support legs and overload -Electro-hydraulic quick support via four hydraulic, horizontally and vertically movable support legs, ensuring tension-free set-up even on uneven or sensitive ground -Caterpillar chassis hydraulically adjustable in height and width
-Sensitive radio control for the chassis, supports and working platform, enabling millimetre-precise movement -Swivel device consisting of a high-performance slewing ring with worm gear and hydraulic motor -Locking blocks – hydraulically unlockable check valves directly attached to all hydraulic cylinders
directly attached, e.g. lift and support cylinders, which prevent the machine from sinking in the event of a line or hose breakage -Hydraulic system protected against excessive pressure by pressure relief valves -Parallel guidance of the work basket by hydrostatic compensation system
-The hydraulic system is filled with biodegradable oil as standard -Oil tank, emergency control, connecting lines, etc. are protected -Ergonomically shaped work basket with access door -Fuzzy control
– Error analysis via plain text display – Variable support system – Single-sided narrow support and double-sided narrow support – Set-up monitoring – Automatic support – Attachment points for safety belts in the work basket – Basket arm movable within load limit – Non-marking rubber tracks

Includes special equipment: -Protective cover for piston rods of support cylinders -Protective cover for hydraulic connections of telescopic cylinders -Protective cover for control box -4 PVC-Base plate 340 x 850 mm. Expected delivery in 0 days.
